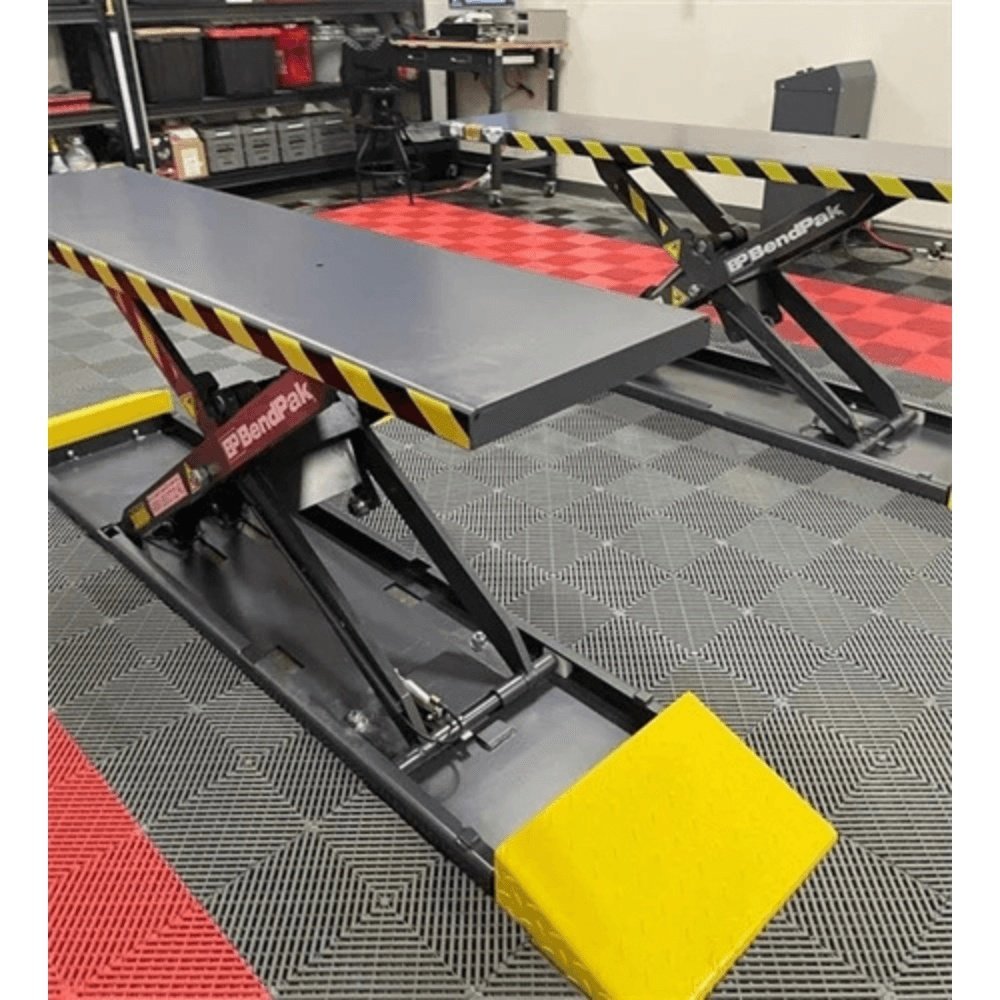

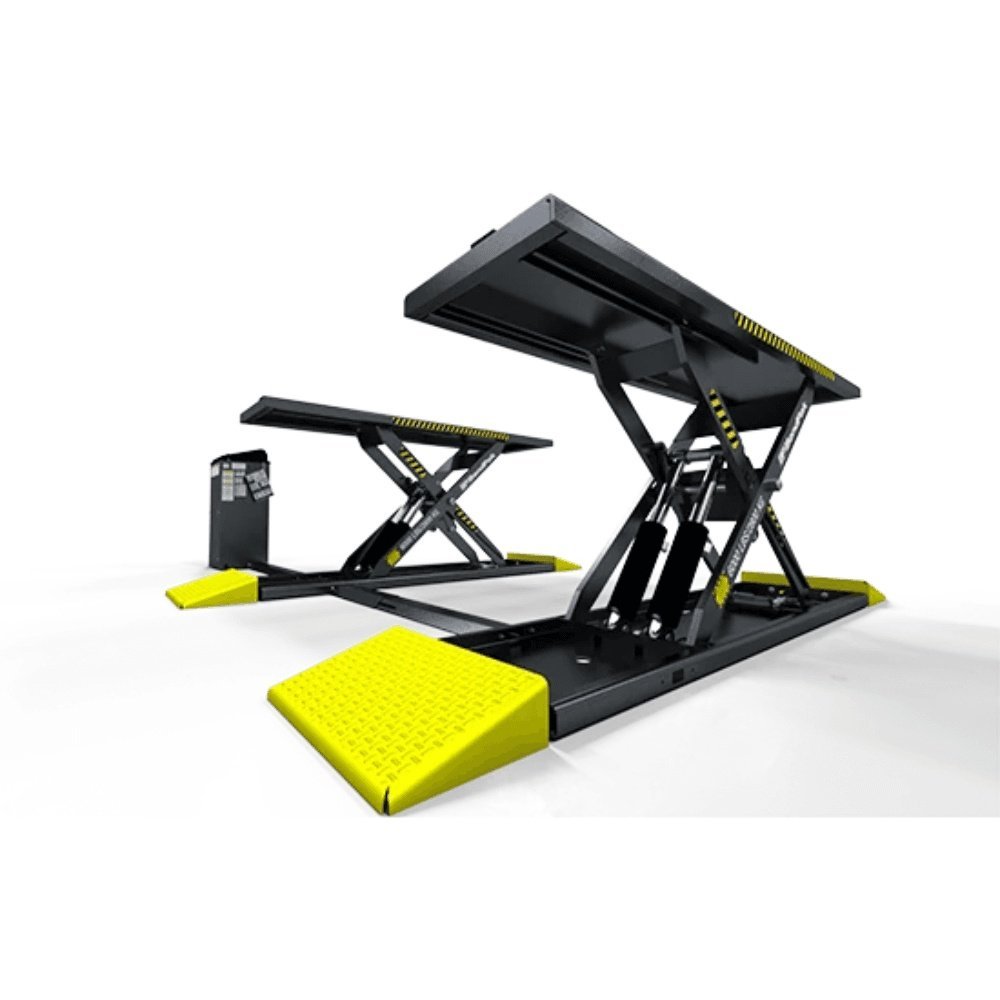

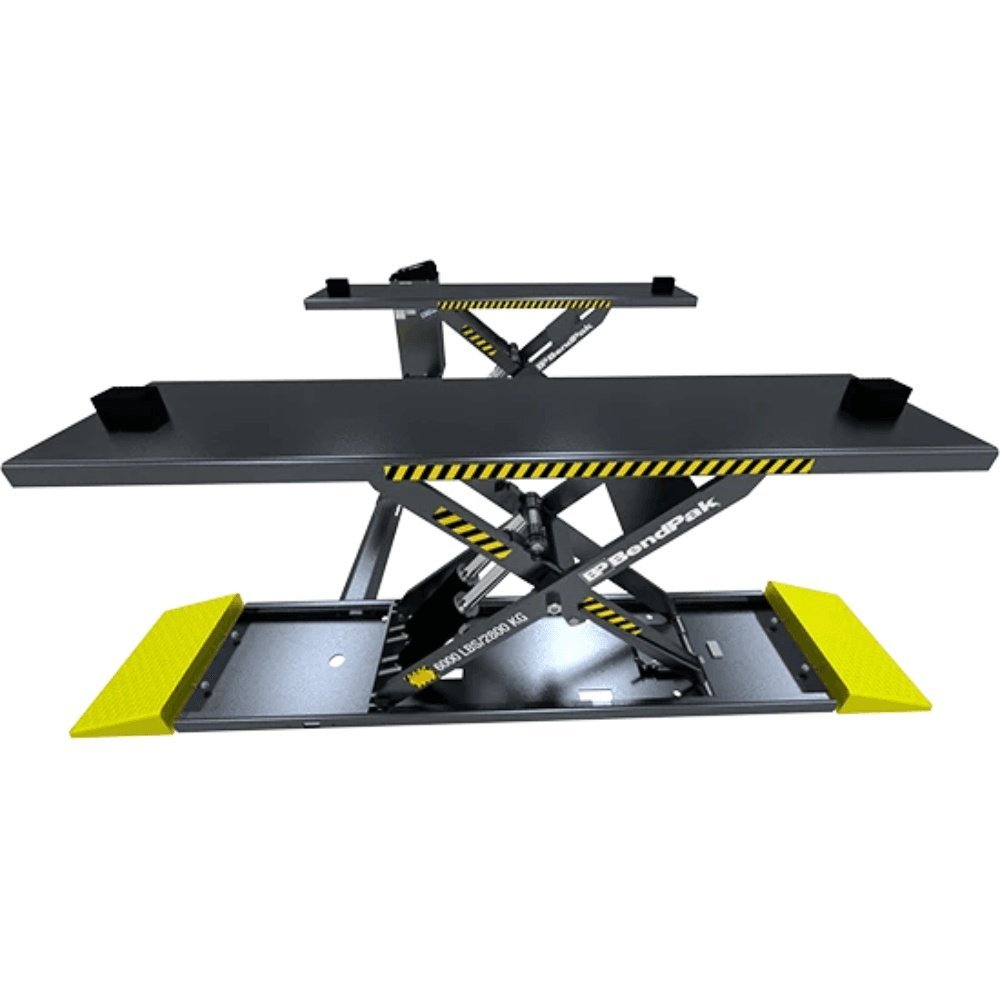

Extended Platform, Mid-Rise Scissor Lift Open-Center

MDS-6EXT Extended Platform Mid-Rise Scissor Lift – 6,000 lb. Capacity
The MDS-6EXT is a high-performance, extended-platform mid-rise scissor lift, designed for versatile and space-saving vehicle lifting. With a 6,000 lb. lifting capacity and open-center design, this lift allows for easy access to undercar components, making it perfect for wheel, brake, and suspension service.

One of the key innovations of the MDS-6EXT is its pneumatic kicker system, which assists the initial lift phase. This air-powered boost overcomes the mechanical disadvantages of scissor lifts at lower heights, ensuring effortless lifting from a collapsed position.

Built with reinforced steel support bars, dual hydraulic and equalizing cylinders, and automatic safety locks, the MDS-6EXT delivers superior durability, safety, and reliability.

Key Features & Benefits
6,000 lb. Lifting Capacity – Ideal for cars, SUVs, and light-duty trucks.
Extended Platform Design – Offers greater lifting versatility for longer vehicles.
Pneumatic Kicker System – Provides extra lifting force for the first 6 inches, ensuring a stronger start from a collapsed position.

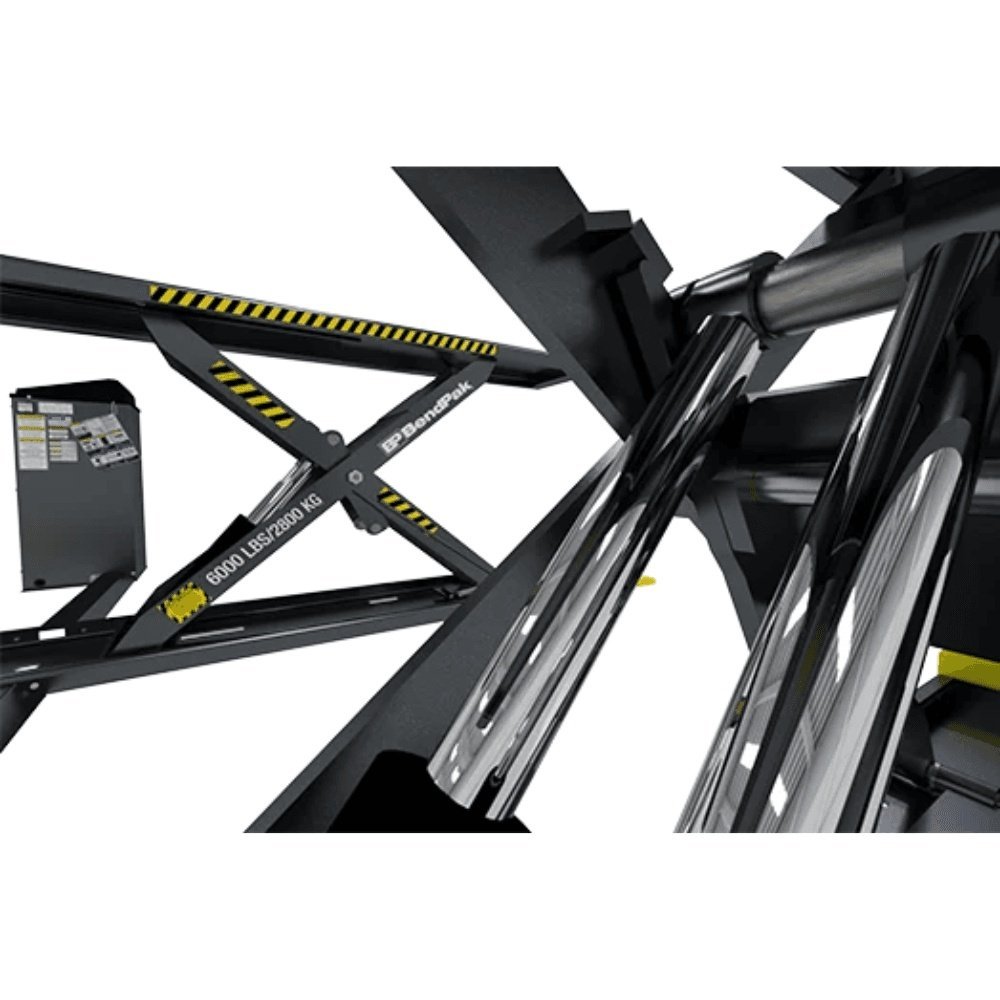

Four Solid Steel-Scissor Frame Support Bars – Enhances stability and strength.
Dual Master Hydraulic Cylinder & Dual Equalizing Cylinders – Ensures safe and level lifting.
Automatic Solid-Steel Safety Lock Bars – Engages automatically during ascent.
Stainless-Steel Pneumatic Cylinders – Releases safety locks during descent with the push of a button.
Push-Button Safety Lock Release System –
Operates away from the lift for improved safety and convenience.
Eliminates the need to manually pull release bars or lock handles.

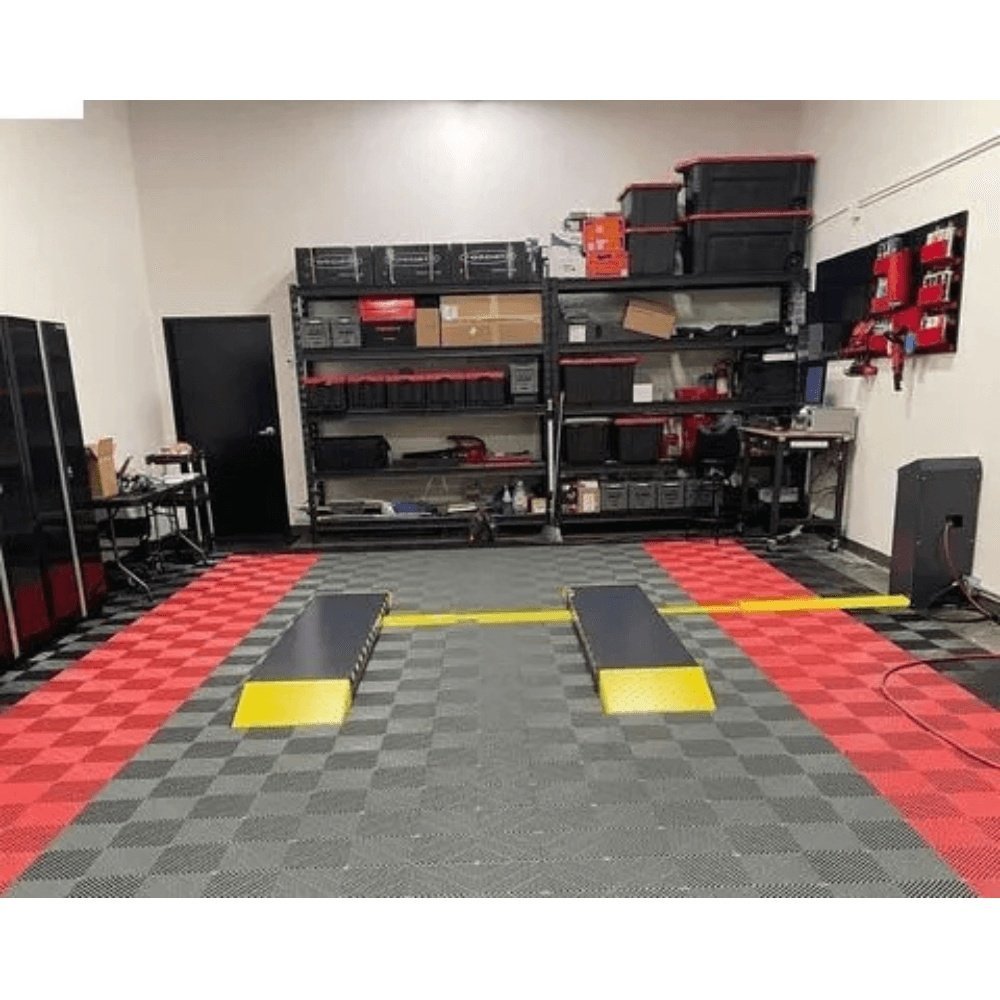

Minimal Shop Space Requirement – Compact when lowered (5.25” min. height), making it ideal for small workshops and garages.
Technical Specifications
Specification Measurement / Detail
Lifting Capacity 6,000 lbs.
Lifting Height (Min.) 5.25″
Lifting Height (Max.) 35″
Width 85″
Length 88″
Voltage Requirement 208-240V
Air Requirement Min. 50 PSI, 10 CFM
Why Choose the MDS-6EXT?
The MDS-6EXT is a premium mid-rise lift that offers a stronger, more stable lifting experience. With an innovative pneumatic kicker system, durable construction, and user-friendly controls, this lift is perfect for professionals and home mechanics looking for a space-efficient and powerful lifting solution.

If you need a high-quality, extended-platform mid-rise scissor lift with exceptional performance, the MDS-6EXT is the ideal choice!
